100M Gigabit Layer 2 Unmanaged Industrial Ethernet Switch

Name: 100M Gigabit Layer 2 Unmanaged Industrial Ethernet Switch
Brand: 3onedata
Price: 1 USD

Brand Name : 3onedata

Model Number : IES2210 Series

Certification : CE FCC RoHS

Place of Origin : Shenzhen, China

MOQ : 1

Price : Negotiable

Supply Ability : 3000pcs per month

Delivery Time : 7 Working Days

Packaging Details : Carton

Ports : 6-10

Poe standard : IEEE802.3af/at,Standards and non-standards

Installation : DIN rail kit and wall mount ear

Power supply : 24VDC, 48VDC or 220VAC Optional

Warranty : 5 years

Contact Now

6/10-port 100M/Gigabit Layer 2 Unmanaged Industrial PoE Switch

Introduction:

IES2210 series are 6/10-port 100M/Gigabit layer 2 unmanaged industrial Ethernet switches. This series provide 100M copper port (optional PoE) and Gigabit Combo port (SFP slot or RJ45), and the PoE power supply conforms to the protocol standard of IEEE802.3af/at. They also adopt DIN-Rail or wall mounting, which can meet the requirements of different scenes.

This series support optional AC/DC power supply. And the input power supply is two independent power supply circuits which can ensure the normal operation of the device when one power supply fails. The design of DIP switch can realize flow control, port with the specified speed of 10M and alarm. When the link failure of port occurs, ALM indicator will light up and send out alarm, meanwhile, alarm device connected to the relay will send out alarm for rapid scene troubleshooting. Hardware adopts fanless, low power consumption, wide temperature and voltage design and has passed rigorous industrial standard tests, which can suit for the industrial scene environment with harsh requirements for EMC. It can be widely used in smart grid, rail transit, smart city, safety city, new energy, aerospace, intelligent manufacturing, military project and other industrial fields.

Specification:

Standard

Protocol

IEEE 802.3 for 10Base-T

IEEE 802.3u for 100Base-TX

IEEE 802.3ab for 1000Base-T

IEEE 802.3z for 1000Base-X

IEEE 802.3x for Flow Control

IEEE 802.3af for PoE

IEEE 802.3at for PoE+

PoE

The maximum power of single PoE port: 30W

The power supply pin of PoE: V+, V-, V+, V- correspond to Pin 1, 2, 3, 6

Interface

100M copper port: 10/100Base-T(X), RJ45, Flow Control, Full/half Duplex Mode, MDI/MDI-X Autotunning

Combo port: 10/100/1000Base-T(X) or 1000Base-X

Console port: CLI command line management port (RS-232), RJ45

Alarm port: 6-pin 5.08mm pitch terminal blocks, including 2-pin alarm terminal blocks, support 1 relay alarm output, current carrying capacity is 1A@30VDC or 0.3A@125VAC

LED Indicator

Running Indicator, Port Indicator, Power Supply Indicator, Alarm Indicator, PoE Indicator (only for PoE products)

Switch

Property

Transmission mode: store and forward

MAC address: 8K

Packet buffer size: 1Mbit

Backplane bandwidth: 7.6G

Switch time delay: <10μs

Power

Requirement

Optional 24VDC, 48VDC or 220VAC, 6 pins 5.08mm pitch terminal blocks, including 4 pins power supply terminal blocks

DC dual power supply redundancy, anti-reverse connection

Power

Consumption

No-load: ≤4.9W@48VDC

Full-load: ≤122.8W@48VDC

Environmental

Limit

Operating temperature range: -40~75℃

Storage temperature range: -40~85℃

Relative humidity: 5%～95%(no condensation)

Physical Characteristic

Housing: IP40 protection, metal

Installation: DIN-Rail or wall mounting

Dimension (W x H x D): 53mm×138mm×110mm

Weight: ≤0.62kg

Industrial

Standard

IEC 61000-4-2 (ESD), Level 3

Air discharge: ±8kV

Contact discharge: ±6kV

IEC 61000-4-4 (EFT), Level 3

Power supply:±2kV

Ethernet port: ±1kV

Relay: ±2kV

IEC 61000-4-5 (Surge), Level 3

Power supply: common mode±2kV, differential mode±1kV

Ethernet port: common mode±2kV, differential mode±1kV

Relay: common mode±2kV, differential mode±1kV

Shock: IEC 60068-2-27

Free fall: IEC 60068-2-32

Vibration: IEC 60068-2-6

Certification

CE, FCC, RoHS

Warranty

5 years

Order Information:

Available Models	Gigabit Combo Port	100M Copper Port	100M PoE Port	PoE Power	Power Supply
IES2210-8T2GC-2P48	2	8	-	-	12~48VDC dual power supply
IES2210-8T2GC-P220	2	8	-	-	85~264VAC single power supply
IES2210-4T2GC-2P48	2	4	-	-	12~48VDC dual power supply
IES2210-4T2GC-P220	2	4	-	-	85~264VAC single power supply
IES2210-8P2GC-2P24-120W	2	-	8	120W	24VDC dual power supply
IES2210-8P2GC-2P48-120W	2	-	8	120W	48VDC dual power supply
IES2210-8P2GC-2P48-240W	2	-	8	240W	48VDC dual power supply
IES2210-4P2GC-2P24-60W	2	-	4	60W	24VDC dual power supply
IES2210-4P2GC-2P24-120W	2	-	4	120W	24VDC dual power supply
IES2210-4P2GC-2P48-120W	2	-	4	120W	48VDC dual power supply

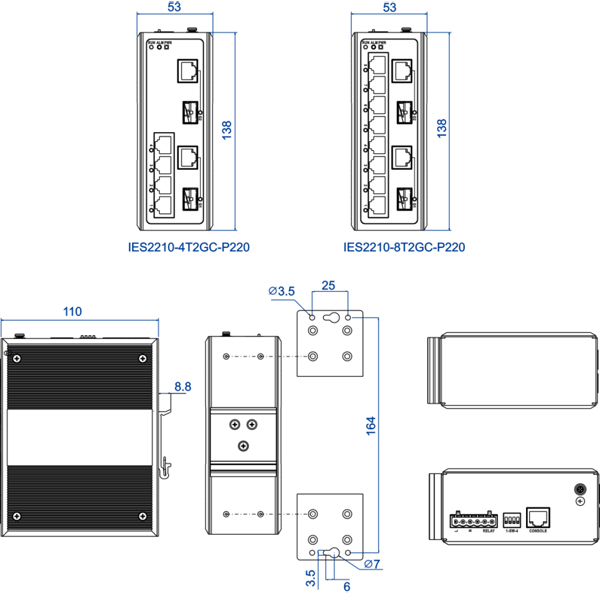

Dimension:

Unit:mm

DC power supply product

AC power supply product
